    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Thu Aug 15, 2013 9:34 am

    Barrows wrote:So I was looking over my saved links and the first blueprint picture is a Toyota Sienna van axle it and the Astro van use a 5x4.5 bolt pattern and coils/trailing arms.
    Perfect. So you have some blueprints for your trailer build. You saw how advantageous mine was at VOT, and I have more room in my XJ than your TJ! Razz But I also had Maliki...


    Last edited by MtnClimber on Thu Aug 15, 2013 10:00 am; edited 2 times in total


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    AllanR

    Posts : 583
    Points : 552
    Reputation : 53
    Join date : 2013-01-22
    Age : 33
    Location : Augusta

    Re: MtnClimber's Adventure Trailer

    Post by AllanR on Thu Aug 15, 2013 10:22 am

    IIRC Astro Van is NOT 5x4.5 It is 5x4.75 Like every other S10 based vehicle

    Lots of options for you Jareb, Seems like your leaning towards Coil's ..
    avatar
    Barrows

    Posts : 1164
    Points : 1039
    Reputation : 31
    Join date : 2012-12-22
    Age : 39
    Location : Union Maine

    Re: MtnClimber's Adventure Trailer

    Post by Barrows on Thu Aug 15, 2013 10:29 am

    I misspoke about the bolt pattern on the astro, it is 5x5 like the 2wheel drive fullsize trucks. It is not the same as the s10 based vehicles.
    avatar
    muffinman

    Posts : 536
    Points : 572
    Reputation : 66
    Join date : 2013-04-05
    Age : 41
    Location : unity

    Re: MtnClimber's Adventure Trailer

    Post by muffinman on Thu Aug 15, 2013 3:11 pm

    what about seeing what harry j smith could build u for a leaf pack like a two pack leaf one being your main the other being as long as your main with curled tips so if one broke u would allways have the second one to back it up just thinking outloud
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Thu Aug 15, 2013 3:20 pm

    I just so happen to have a boat trailer out back with 33" long, 1 3/4" wide leaf springs. Spring hangers are $7.99 a pair. I'll try that route for now til I design and build my long arm trailer suspension.


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    FKreider

    Posts : 14
    Points : 23
    Reputation : 1
    Join date : 2013-04-30
    Age : 27
    Location : Sturbridge, Mass

    Re: MtnClimber's Adventure Trailer

    Post by FKreider on Sat Aug 17, 2013 1:33 am

    The leafs on my trailer are rated for 2500lb, they were three leaf packs and I took out the middle leaf. They have held up fine so far, however its still a brand new trailer only time will tell.

    Maybe what happened at the VOT was just a fluke thing from the rough trails? I've seen leaf springs break in all kinds of odd situations, sometimes it just happens.

    I do plan on offering shocks on my trailers as an "upgrade" option, but with all the test running I have done it seems that they aren't neccesary with a little weight in the trailer, actually I think it problably takes bumps smoother than my jeep !

    It was very cool to see your trailer being used at the VOT!
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Sat Aug 17, 2013 8:00 am

    Frank, where'd you get your leafs from? I'm hoping the breakage was a fluke, but where it broke tells me I shoulda left the leaf in..


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    Mr. Mike

    Posts : 363
    Points : 381
    Reputation : 64
    Join date : 2013-01-25
    Age : 39
    Location : Winthropolis

    Re: MtnClimber's Adventure Trailer

    Post by Mr. Mike on Sat Aug 17, 2013 10:05 am

    Off topic from the suspension, but I want to buy your fenders a beer, those things got worked hard last week and just smiled and took it. I am still in disbelief that they held up in some of those situations.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Sat Aug 17, 2013 10:21 am

    There's two fenders... Cool


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.

    Guest
    Guest

    Re: MtnClimber's Adventure Trailer

    Post by Guest on Sat Aug 17, 2013 10:32 am

    I am no engineer by any means, or do I play one on TV

    however thinking of how springs work it seems apparent that shocks would have a dampening effect upon the spring vibrations

    if you think of the suspension as in form of harmonics like a tire has going down the road, you are trying to maintain one within reasonable levels

    so if shocks keep the vibrations/harmonics within check it seems they are advantageous

    it might be that whatever broke the spring would have happened given the rough terrain & it was just too much anyways
    avatar
    muffinman

    Posts : 536
    Points : 572
    Reputation : 66
    Join date : 2013-04-05
    Age : 41
    Location : unity

    Re: MtnClimber's Adventure Trailer

    Post by muffinman on Sat Aug 17, 2013 10:45 am

    I don't know Ihave hauled alot of trailer over the years the only spring I every broke was on my snowmobile trailer and that was because it was over loaded and i hit a bump so hard i bent the axle and blew both tires and bent the tougne I think it was just a fluke thing
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Sat Aug 17, 2013 11:18 am

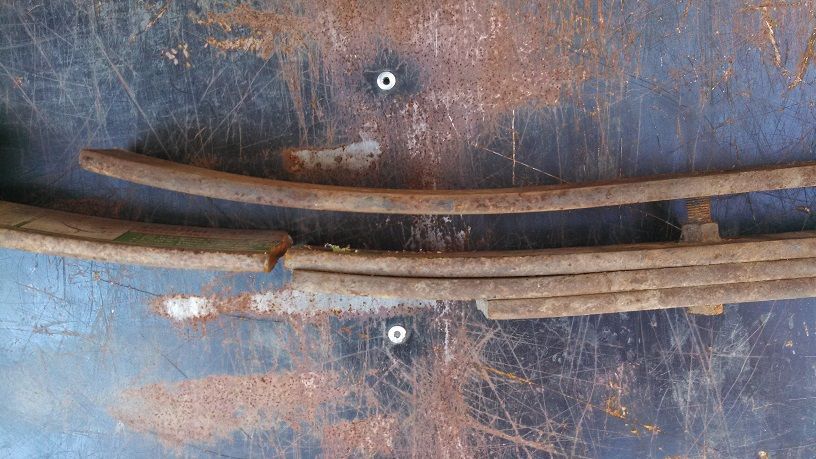

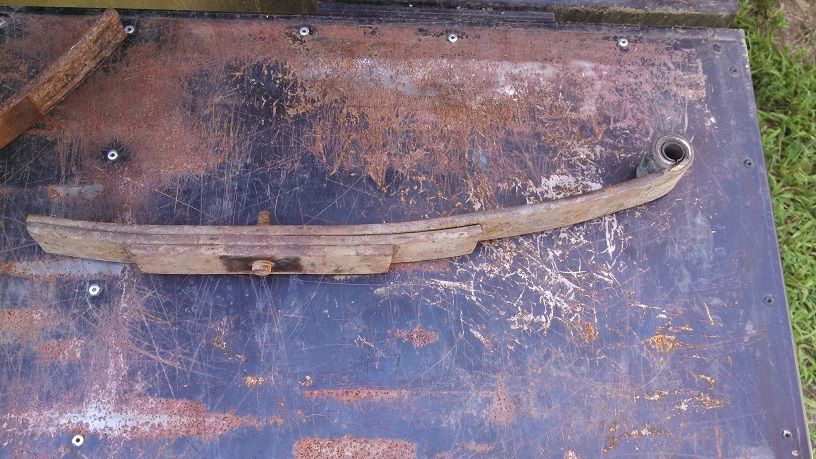

    This is the broken 4-leaf, 1750lb leaf pack. I removed the 2nd longest spring, the next one from the main leaf. With the removed leaf, the capacity is less. The four leafs are staggered in length equally. With the complete pack, the ride was harsh and not ideal. I couldn't carry enough weight to smooth out the ride, nor would I want to. Hence why I removed the 2nd longest leaf.
    I tried running lower air pressures to help with the jounce, but that only heightens my rolling resistance and could cause premature tire failure. This example is for paved roads. Off-road I air them down depending on conditions and load.

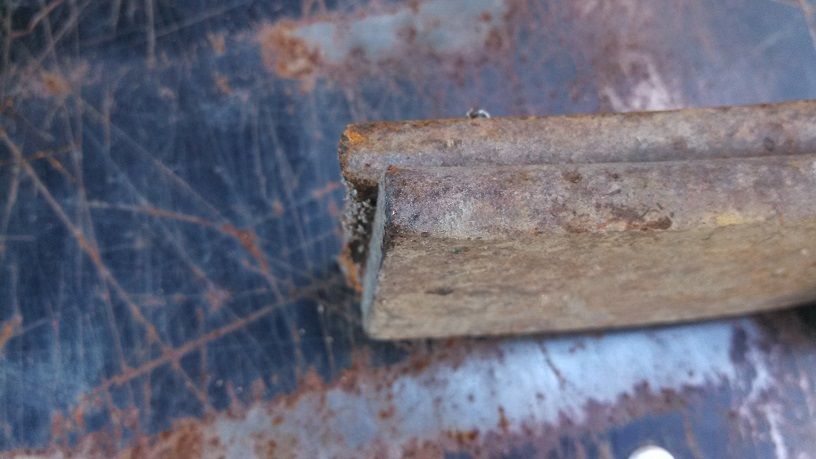

    This is where the main leaf broke. Not an area that would normally have much, if any, stress if the pack was complete.

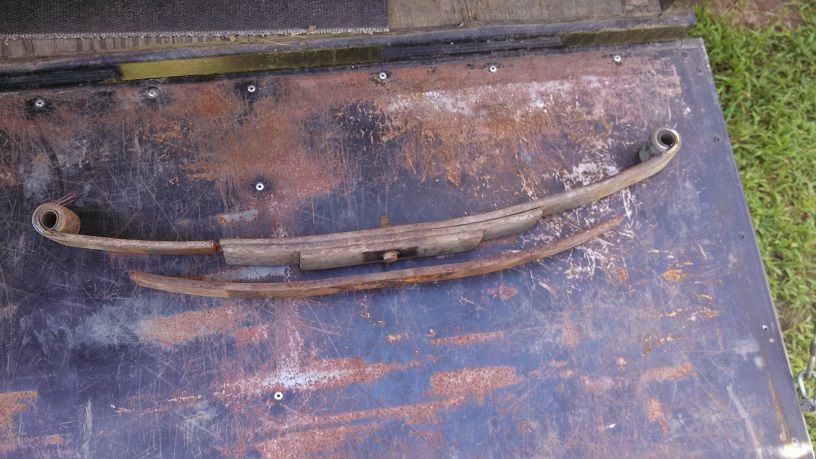

    Here you can see how long the removed leaf is. This is to show where the break was in comparison to the removed leaf length.




    I've tried running the stock 4-leaf set-up and it was very difficult to get the springs to budge. So I removed a leaf. BAM!, it broke. How soon til the other side breaks? I don't want to find out while I'm out in the willy-whacks. I'll toss in my boat springs, which are longer and offer a softer ride. Shocks will still go in at some point, but the boat leafs are free and this'll work for the NMW trip in 2 weeks.


    Last edited by MtnClimber on Fri Mar 06, 2015 6:40 pm; edited 2 times in total


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.

    Guest
    Guest

    Re: MtnClimber's Adventure Trailer

    Post by Guest on Sat Aug 17, 2013 12:04 pm

    Oh man that makes much more sense now, here's my take of trying to understand

    it seems more wise to remove the shortest spring on the bottom & leave the others above

    however like you said it was too stiff of a ride

    it seems that each spring is in fact supporting the next one down from flexing too far

    so in essence it was like snapping a branch over your knee right where it broke

    & it needed the support of the one below that wasnt there & it snapped

    thats good to know, however you slice it
    avatar
    AllanR

    Posts : 583
    Points : 552
    Reputation : 53
    Join date : 2013-01-22
    Age : 33
    Location : Augusta

    Re: MtnClimber's Adventure Trailer

    Post by AllanR on Sun Aug 18, 2013 6:05 pm

    Great visual. I was thinking it broke closer to the eye. Food.for thought after setting the pictures.
    avatar
    FJ Boozah
    Admin

    Posts : 1675
    Points : 1746
    Reputation : 175
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by FJ Boozah on Sun Aug 18, 2013 6:11 pm

    Honestly, as Im sure you are, I was very impressed with how far they made it. This isnt their first trip by any means and they have been through a lot of abuse and still held up pretty well. These are still the "stock" ones that Scott had put on originally right? If so, then I might go with a longer, larger set to try first but I wouldnt be to bummed out seeing as they did take quite the abuse, even after being altered which was probably past the given specs that they were tolerated for in the first place.

    It would be cool if you could some how get some Cherokee springs to work so that you could always bring a spare and it would cover both the jeep and the trailer.


    _________________
    Mio!!!!!
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Sun Aug 18, 2013 6:31 pm

    Ya, I think I've used it more than Scott has/did Laughing
    VOT was the first trip with the leaf removed, but the springs are barely 2 years old. I put the broken leaf pack back together and we'll see if TSC will swap 'em out for me.


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Sat Aug 24, 2013 9:26 pm

    New leaf pack & u-bolts installed on the passenger side tonite. 1750# leaf pack with the 2nd shortest leaf removed. Tomorrow the left side leaf pack gets "rebuilt".

    TSC wouldn't warranty the broken spring pack cuz it's been more than 30 days and I didn't have a receipt. So I had to call the manufacturer...yaa, cuz who's closed on the weekends. So I left a detailed message. Now we wait....


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Sun Aug 25, 2013 9:45 am

    Drivers side leaf pack has been reconfigured.....Off for a "road-test"...


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Tue Sep 03, 2013 8:43 pm

    This followed me quite well this past weekend although it doesn't care to drift around corners....

    Sooner-than-later upgrade will be LED tail lights. The filaments can't seem to stay intact with all the bouncing...

    Other than that a new floor is in order, fresh coat of paint before wintah, and the suspension & multi-axis hitch will get a revamp.


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Wed Sep 04, 2013 7:49 am


    I'm thinking the same but different that'll replace these:



    Last edited by MtnClimber on Fri Mar 06, 2015 6:42 pm; edited 1 time in total


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Wed Sep 04, 2013 7:57 am



    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Wed Sep 04, 2013 8:08 am

    TSC reviews aren't so good, 50/50.

    Lowe's reviews are 100% x3

    I like the Lowe's ones.

    I could use some for the car trailer too.


    Last edited by MtnClimber on Fri Mar 06, 2015 6:43 pm; edited 2 times in total


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Fri Sep 13, 2013 2:11 pm

    Just ordered a pair of 39LED 1157 bulbs (white) for the trailer. Should arrive early next week. Cheap money too.
    I chose this style of LED bulb due to the way the bulb socket is situated. The bulb hangs down at a 30-45 degree angle towards the lense so I needed the light output to project in all directions.



    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    MtnClimber
    Admin

    Posts : 3782
    Points : 3753
    Reputation : 149
    Join date : 2012-12-20

    Re: MtnClimber's Adventure Trailer

    Post by MtnClimber on Thu Sep 19, 2013 11:14 am

    MtnClimber wrote:Just ordered a pair of 39LED 1157 bulbs (white) for the trailer. Should arrive early next week. Cheap money too.
    I chose this style of LED bulb due to the way the bulb socket is situated. The bulb hangs down at a 30-45 degree angle towards the lense so I needed the light output to project in all directions.

    These came in today. Unfortunately I was mislead when the seller advertised these for trailer applications. They work "ok" as marker lights but do NOT function as brake/blinker lights. If you only needed them for marker lights, make sure you have ample reflective material in the housing or they're useless. The lumen output was not very impressive either.

    Back to the drawing board..


    _________________
    Put a little gravel in your travel.
    It's human nature to want to explore.
    avatar
    AllanR

    Posts : 583
    Points : 552
    Reputation : 53
    Join date : 2013-01-22
    Age : 33
    Location : Augusta

    Re: MtnClimber's Adventure Trailer

    Post by AllanR on Thu Sep 19, 2013 11:22 am

    Jareb, here is the LED guy I used. Give him a call/text and let him know what you are looking for.

    http://maine.craigslist.org/pts/3995797751.html

    I met him at a carshow threw another friend of mine. warranties most of his bulbs. easy to deal with and cheap.
